VRB Series Outdoor Heat Recovery Units

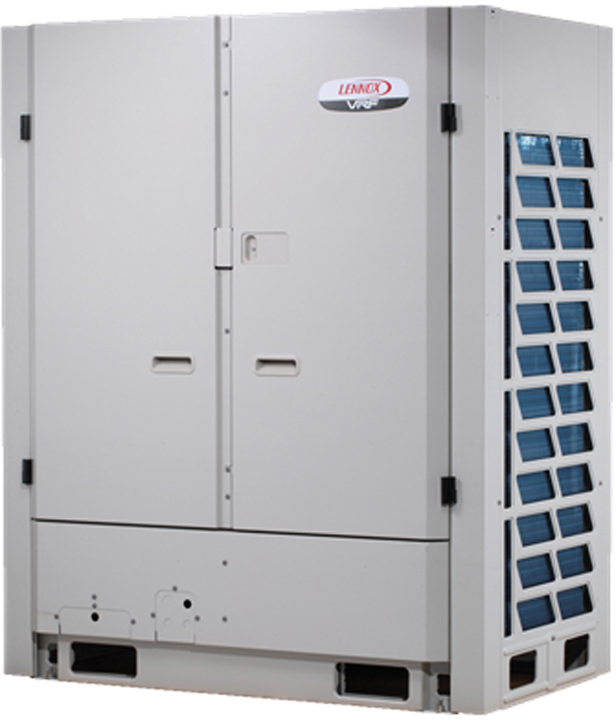

VRB Heat Recovery Outdoor Unit
Overview

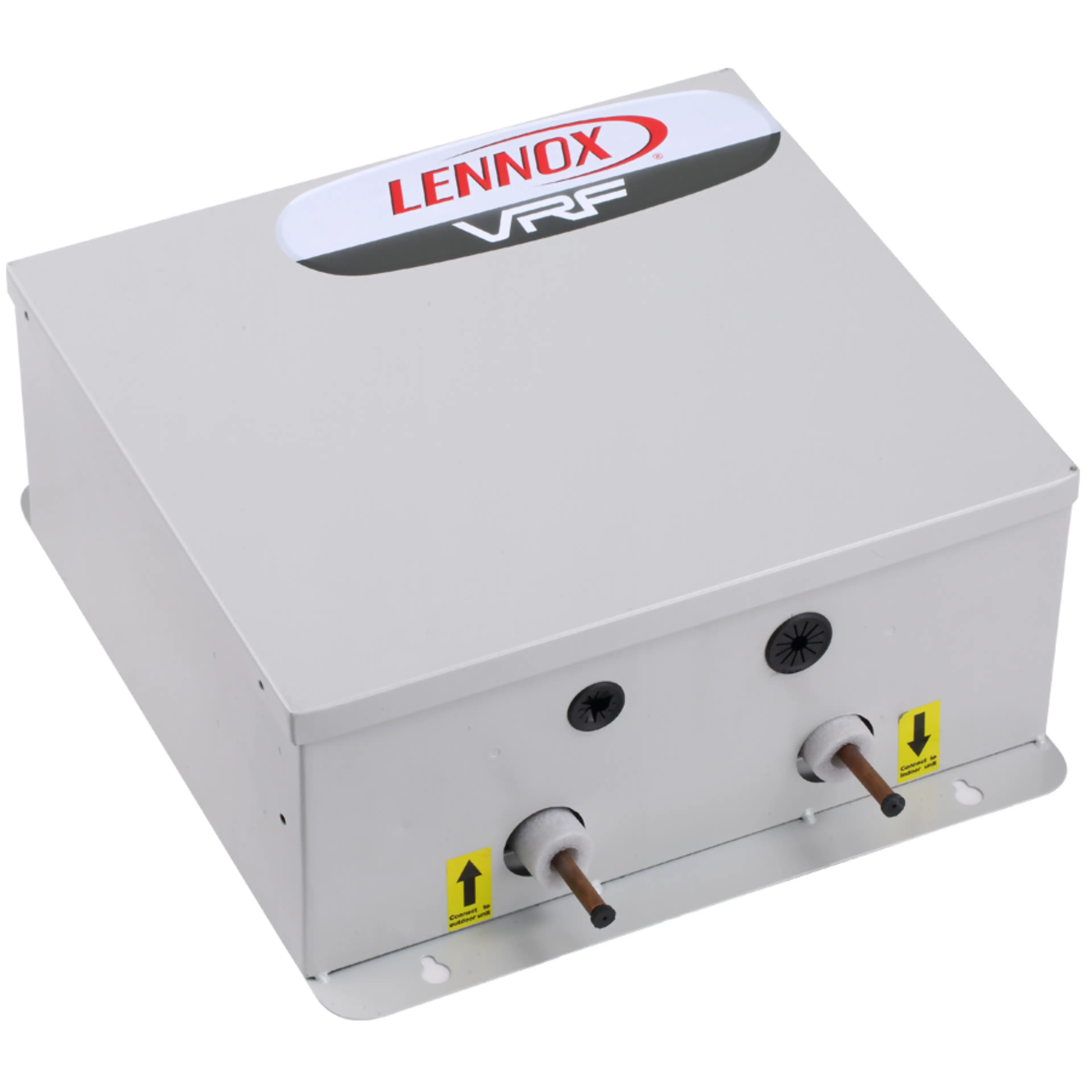

AHU Control Kit
The Lennox VRF AHU Control Kit creates an HVAC solution that is adaptable, efficient, and customizable. The 2-, 4-, and 8-ton AHU Control Kit enables Lennox VRF VRB heat recovery and VPB heat pump outdoor units to operate with Lennox non-VRF indoor units and 3rd party non-communicating indoor units such as coils, air handlers, and furnaces with 1 to 20 tons capacities.
VRF Low Ambient Cooling Kit
The VRF Low Ambient Cooling Kit extends cooling operation for Lennox VRF Heat Pump and Heat Recovery outdoor units down to -10°F. The Low Ambient Cooling Kit features a top hood assembly and side and rear snow guard panels. Expands Lennox VRF Cooling from 5°F down to -10°F. Available for both outdoor unit cabinet sizes (6 to 10 ton and 12 to 16 ton).
2 Port Mode Selection Box
2-Port Model with individual cooling or heating mode for each port. Available in 208-230V/1 ph. Weight: 132 lbs. Model #V8MSBB02
4 Port Mode Selection Box
4-Port Model with individual cooling or heating mode for each port. Available in 208-230V/1 ph. Weight: 132 lbs. Model #V8MSBB04
6 Port Mode Selection Box
6-Port Model with individual cooling or heating mode for each port. Available in 208-230V/1 ph. Weight: 132 lbs. Model #V8MSBB06
8 Port Mode Selection Box
8-Port Model with individual cooling or heating mode for each port. Available in 208-230V/1 ph. Weight: 201 lbs. Model #V8MSBB08
10 Port Mode Selection Box
10-Port Model with individual cooling or heating mode for each port. Available in 208-230V/1 ph. Weight: 205 lbs. Model #V8MSBB10
12 Port Mode Selection Box
12-Port Model with individual cooling or heating mode for each port. Available in 208-230V/1 ph. Weight: 209 lbs. Model #V8MSBB12
Product Features
Lennox VRF® Heat Recovery units offer a simultaneous heating and cooling solution capable of conditioning up to 64 zones from a single system. The heat recovery process moves heat from spaces requiring cooling into spaces requiring heating, maximizing energy efficiency and occupant comfort.
- Hinged access panels on all outdoor units for easy access to internal components.
- Built-in LCD service console allows technicians to commission, startup, and service Lennox VRF systems from the outdoor unit with no additional software, external devices, or gauges.
- Inverter-Driven Vapor Injection Compressor– Reduces energy usage by varying the compressor speed in response to the capacity demand at each indoor unit. Vapor injection technology provides increased capacity at both low and high ambient temperatures, as well as improved efficiency.
- High-Efficiency Operation – Part-load IEER efficiencies up to 26.2 and simultaneous cooling and heating SCHE efficiencies up to 32.8 offer some of the most efficient systems on the market.
